BUILD WITH TRUST.
BUILD WITH AGBA.

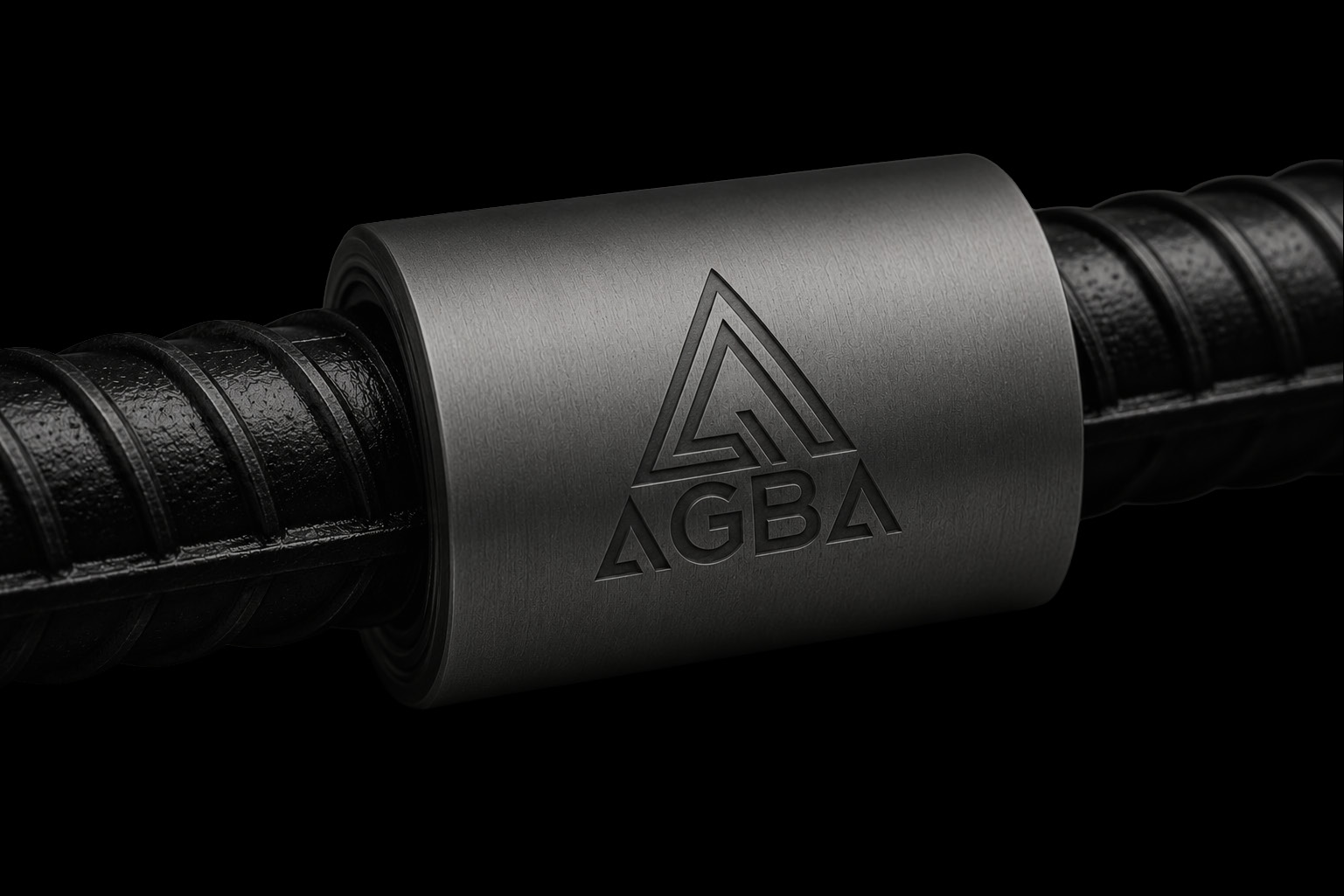

Precision parallel-thread rebar couplers — forged before threaded, 100% gauge-checked and NABL tested. A splice that develops full tensile equivalence with the parent bar. Build with trust. Build with AGBA.
Ø12–40
mm bar range
Class L & H
IS 16172:2023
25%
slimmer wall
100%
gauge-checked
CERTIFICATION & COMPLIANCE
CERTIFIED TO THE STANDARD THAT MATTER
Every AGBA coupler is manufactured and independently tested to national and international standards with a NABL test certificate shipped on every single batch. The proof travels with your order.
IS 16172:2023
Couplers for mechanical splicing of bars — Class L & H, the governing Indian standard.
ISO 9001:2015
Certified quality management system across manufacturing and dispatch.
ISO 45001:2018
Occupational health & safety management certification at our works.
NABL Tested
Independent lab testing with a signed test certificate on every batch.
Why IS 16172 asks for the forge
FORGED BEFORE THREADED

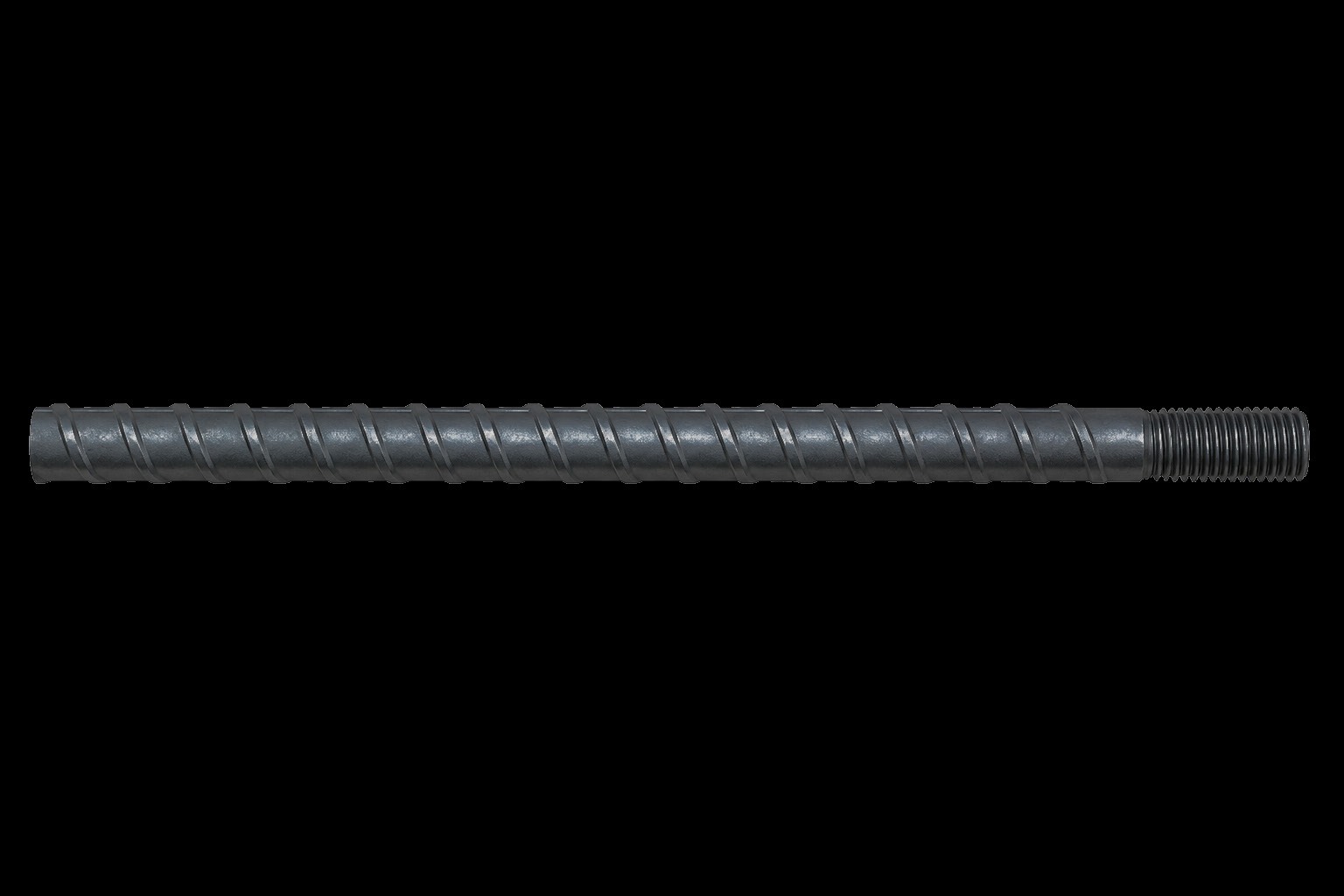

A splice depends on two halves — a cold-forged bar end and a precision-engineered coupler. In a high-rise column, both carry the load. Cut threads straight into the bar and you sever the grain at every root, reducing the load-bearing section. AGBA upsets the bar end first, so the net section is preserved and grain flows through the threads.
Machined — grain cut
Threads cut into the bar. Cross-section reduced, grain severed — the coupler thread strips under load.
Machined — grain cut
Threads cut into the bar. Cross-section reduced, grain severed — the coupler thread strips under load.
SLIMMER WALL, STRONGER OUTCOME
25% SLIMMER WALL
AGBA couplers meet IS 16172 on thread engagement, tensile and fatigue performance — then go further. A 7.5 mm wall on a 32 mm bar versus a conventional 10–12 mm means engineered clearance, built to pour.
AGBA SLIM WALL
7.5 mm
OD 53 mm · free concrete flow
CONVENTIONAL
10–12 mm
OD 58–62 mm · high pour risk
- Lower honeycombing
- Better concrete flow
- Cost & schedule saving
- Better vibrator access
- Better cover & finish
- Maintains clear cover at the splice
Products & Services
EVERYTHING A MECHANICAL SPLICE NEEDS
From the certified coupler to on-site forging, lab certification and pan-India dispatch — one accountable source for the whole connection.

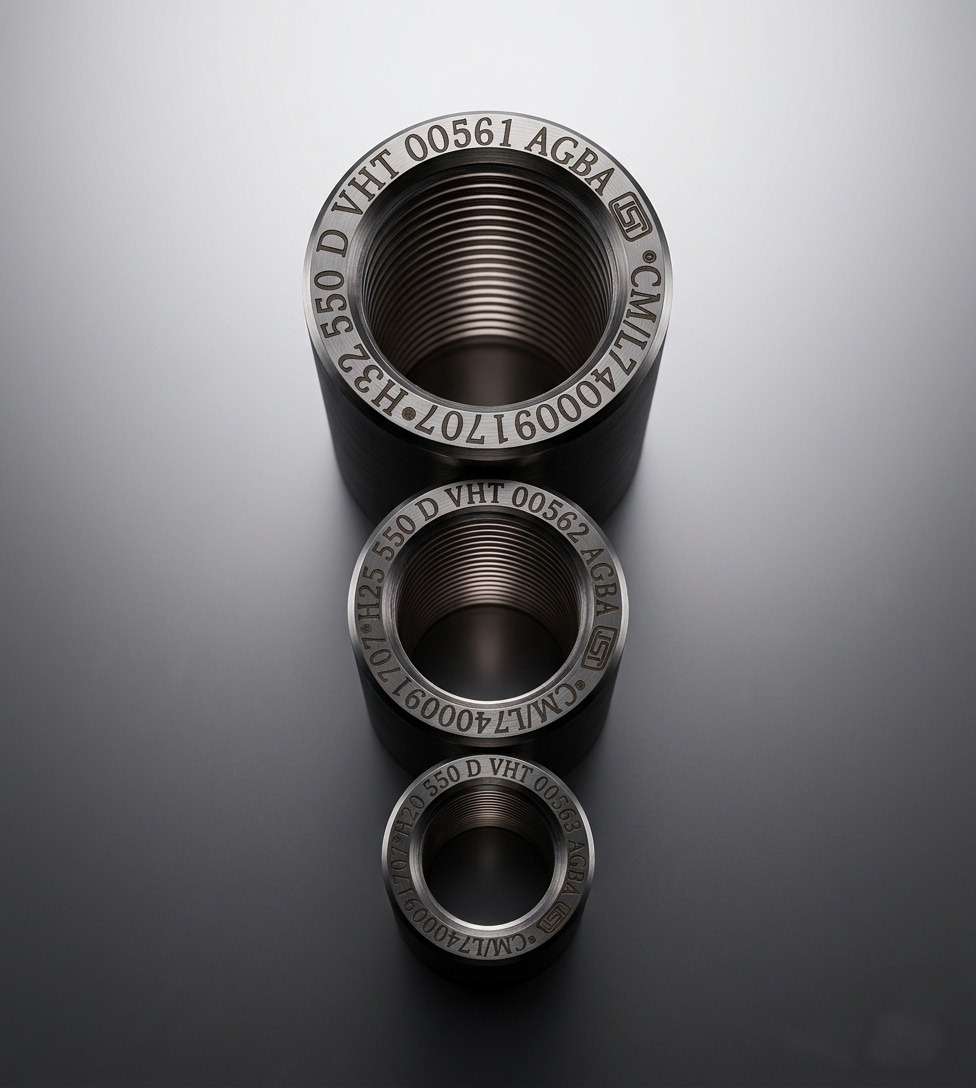

Parallel-Thread Coupler
The core product — IS 16172:2023 Class L & H certified for Fe 500D/550D rebar across Ø12–40 mm.
Cold-Forging Service
On-site bar-end upset forging and threading with gauge-verified output on every bar.
Full Size Range
Engineered couplers across all standard industry sizes — each one checked and verified.
Lab Certification
A NABL-accredited independent test certificate ships with every single batch.
Pan-India Dispatch
Direct-to-site logistics from Butibori MIDC, Nagpur, with full technical support.
Go / No-Go QC
Every coupler plug-gauged. Failures are scrapped — never reworked. No sampling.
Butibori MIDC, Nagpur
Made at source. Tested at every step.
Six controlled stages from steel intake to dispatch — with quality verification built into each one, not bolted on at the end.
01
Steel Intake
Tested pipe. Heat number logged and carried with the batch to dispatch.
02
Raw Material Cutting
Pipe cut to required sizes and dimensionally verified.
03
Thread Cutting
Parallel thread to IS 16172 Annex G. Pitch, form & depth gauge-verified.
04
Go / No-Go
Every coupler gauged. Fails are scrapped, not reworked. No sampling.
05
NABL Testing
Every batch tested at a NABL-approved lab; certificate ships with the consignment.
06
BIS Marking & Dispatch
Lot code, class and grade marked. Direct-to-site across India.
